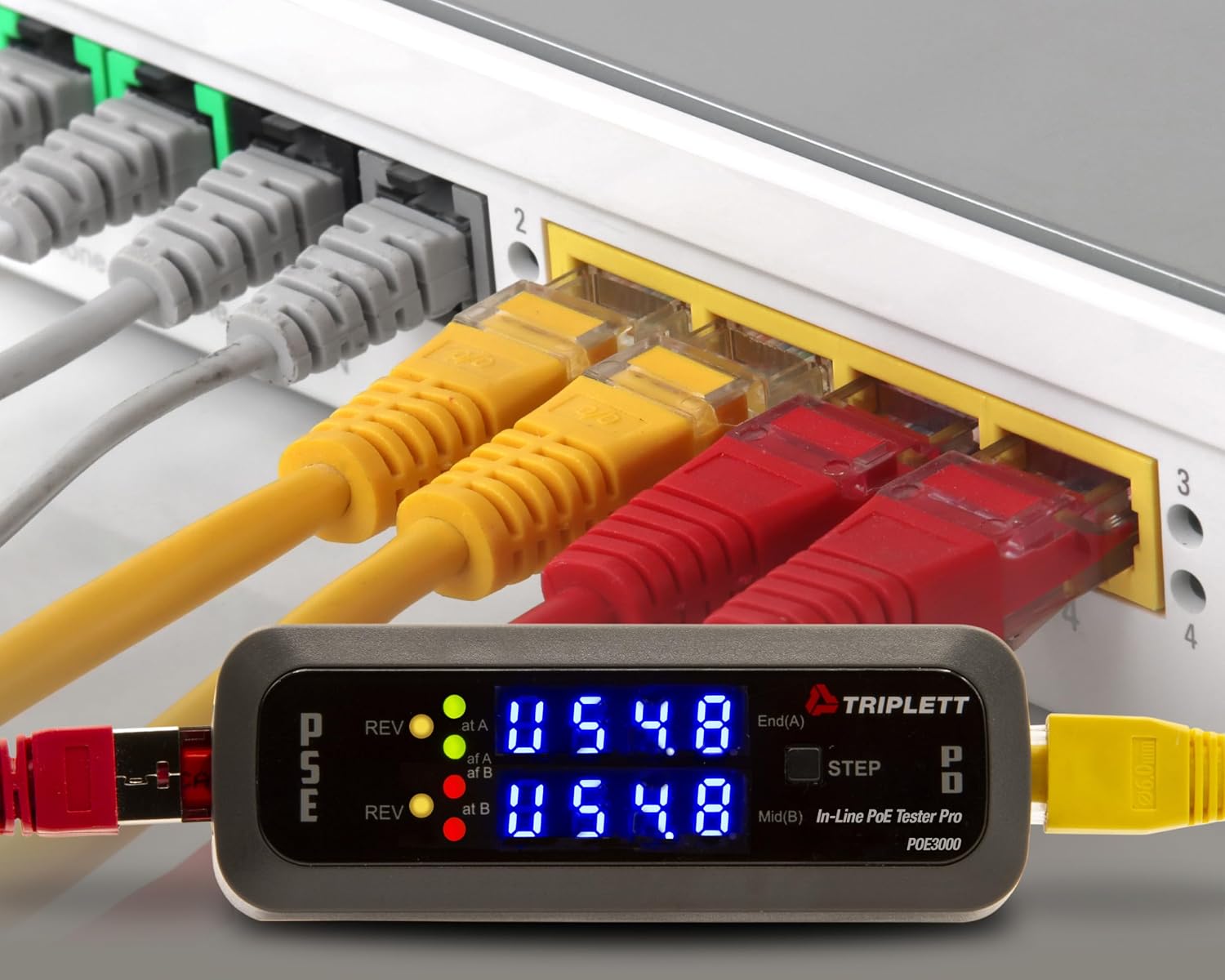

Triplett POE3000 in-line Power Over Ethernet PoE Tester Pro - PSE-Type/Class, Power Source, Polarity, Voltage, Current

The Triplett POE3000 In-Line Power Over Ethernet Tester Pro helps to speed up the installation and troubleshooting of PoE system devices. It can detect PSE-type/class, power source, polarity, voltage, current, power, and whether it is End Span (1/2, 3/6), Midspan (4/5, 7/8), or across all 4 pairs. If you are a VoIP phone and IP camera installer, you will know if there is power and a data pair available for your equipment. There is a test mode that can determine if a standard PoE (36 to 60V) or non-standard (11 to 60V) passive PoE is being used. For inline power level monitoring the display alternates between Voltage, Current and Power and incorporates a step button for selecting specific data to display. No batteries required, uses system power when connected to a device. 1-year warranty.

• Simple and Accurate: Helps to speed up the installation and troubleshooting of PoE system devices
• Visual Indicators: 4 LEDs indicate IEEE802.3af or 802.3at/bt standard; 2 Yellow LEDs indicate reversed polarity for power type
• PoE Detection & Ethernet Port Testing: Detects PSE-type/class, power source, polarity, voltage, current, power, and whether it is End Span, Midspan, or across all 4 pairs
• Versatile Testing: Determines standard PoE or non-standard passive PoE
• Inline Power Level Monitoring: Alternately displays Voltage, Current, and Power and incorporates a step button for selecting specific data to display
