Soundcraft Ui24R 24 Input Digital Mixer w/Wifi+App Control Ui 24R+DBX Crossover

Package: Soundcraft Ui24 24-Input Digital Mixer with Wi-Fi, App Control and Recording + DBX 234S Stereo 2/3 Way/Mono 4-Way Professional Crossover, Rack Mount, 2 Channel

Package Includes:

(1) Soundcraft Ui24R 24 Input Digital Mixer w/Wifi+App Control+Recording Ui 24R
(1) DBX 234S Stereo 2/3 Way/Mono 4-Way Professional Crossover, Rack Mount, 2 Channel

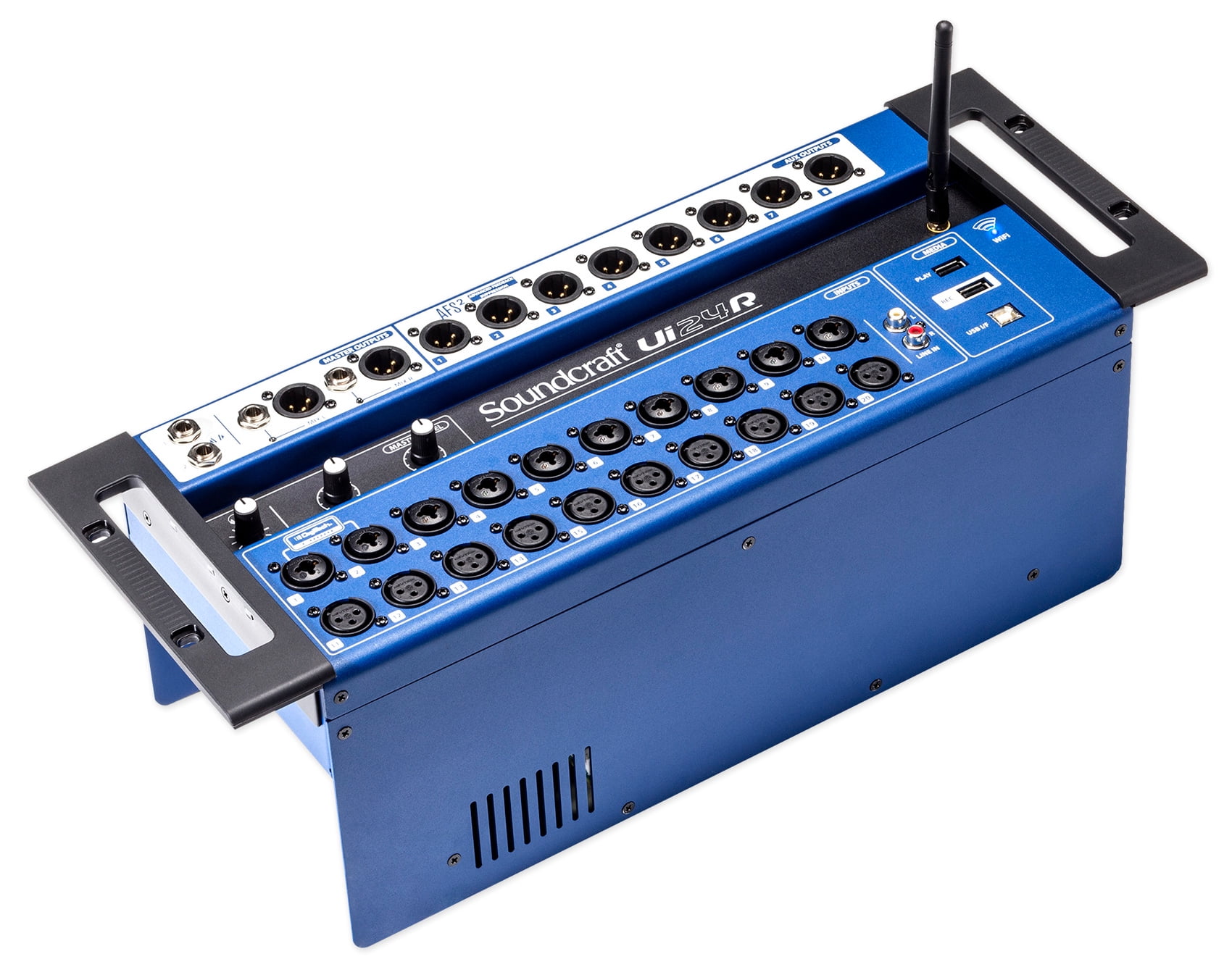

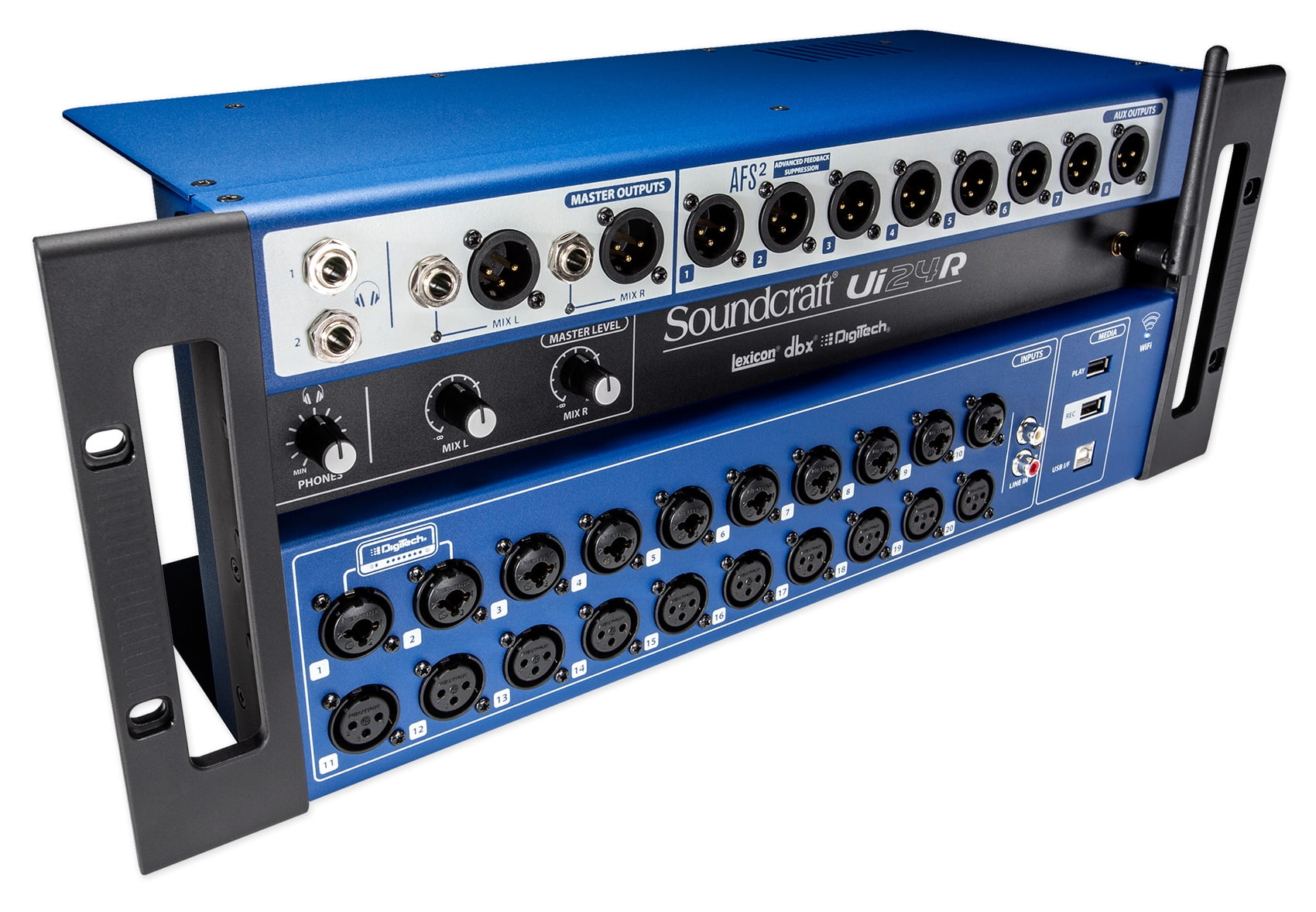

Features of UI24R:

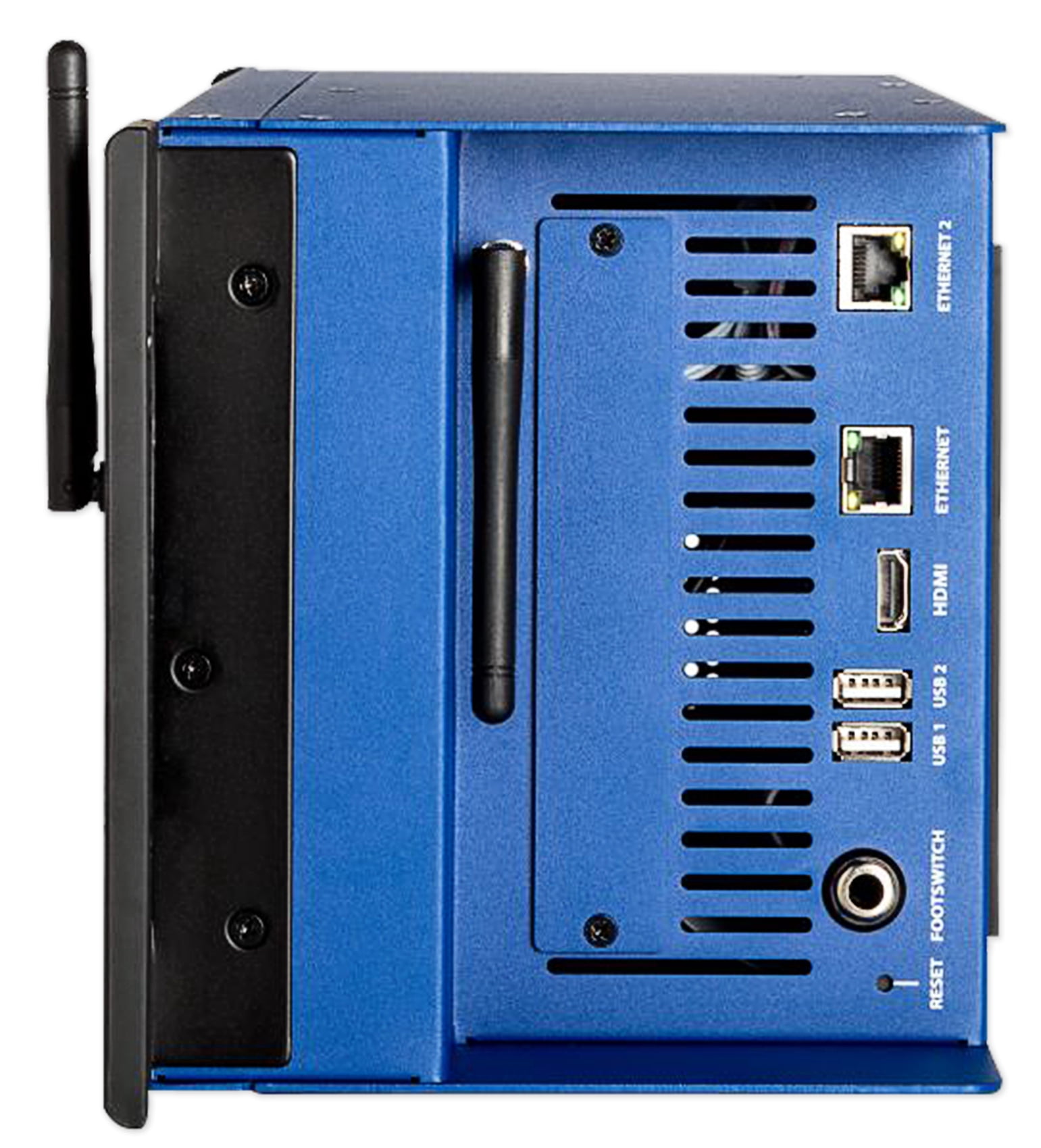

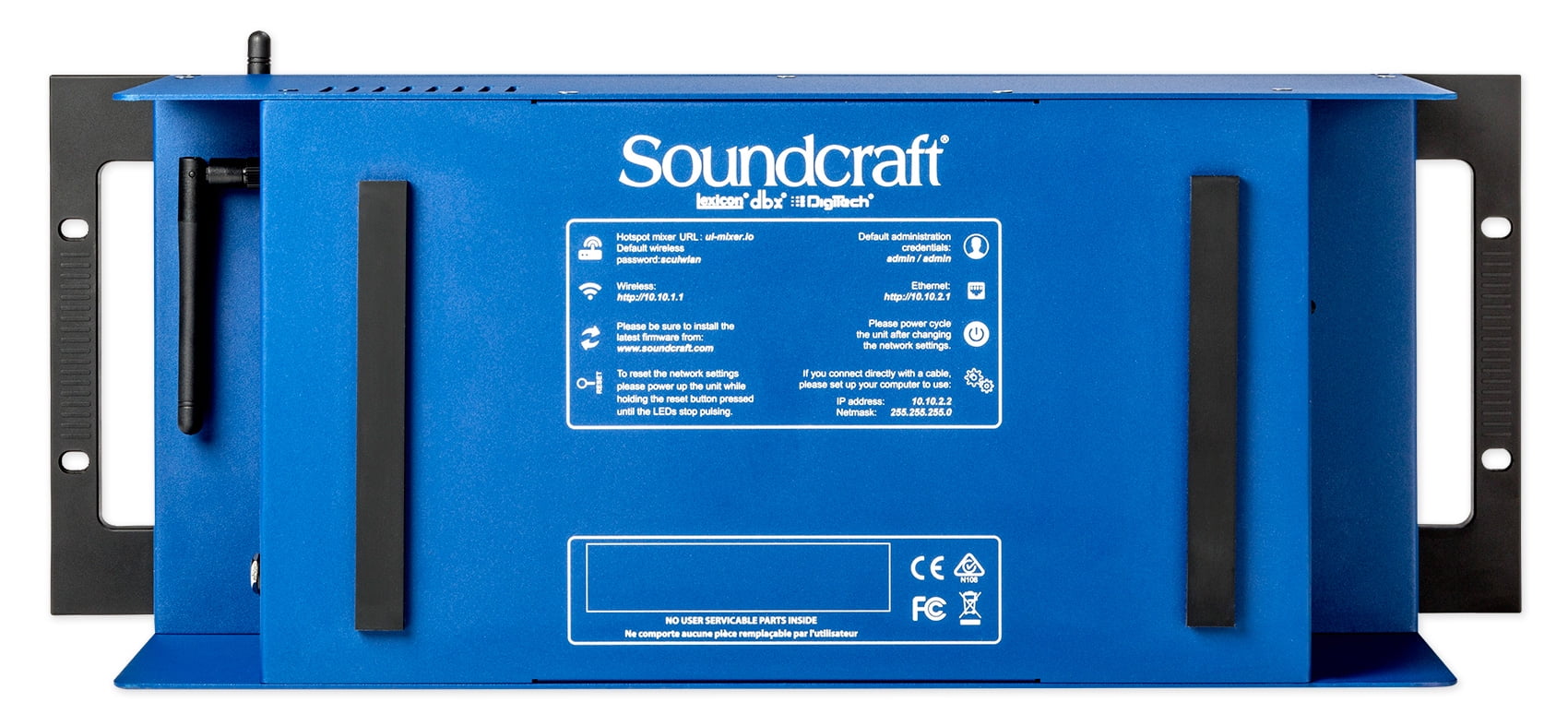

Soundcraft Ui24 24-Input Digital Mixer with Wi-Fi, App Control and Recording
Renowned Soundcraft quality and performance
Built-in dual-band Wi-Fi eliminates the need for a router to provides a reliableconnection to up to 10 mobile devices in mission critical situations
Control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional apps
Record and mix with the warmth of 20 professional-quality Studer-designed preamps
3 Effects: Compression, Reverb, and Delay Processing
2 Channels of DigiTech guitar amp modeling
Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/PC
24 simultaneous inputs (10 combo ¼” TRS/XLR, 10 XLR, 2 line level, 2 digital)
4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
31-band graphic EQ, noise gate, compressor, and dbx® AFS2 Automatic Feedback Suppression on all outputs
Real-time frequency analyzer (RTA) on inputs and outputs
Compatible with Mac/PC DAWs and other music software
Compatible with Harman Connected PA application and system for easier setup and control
4U Rack Mount Design

Click here for the Owner's Manual

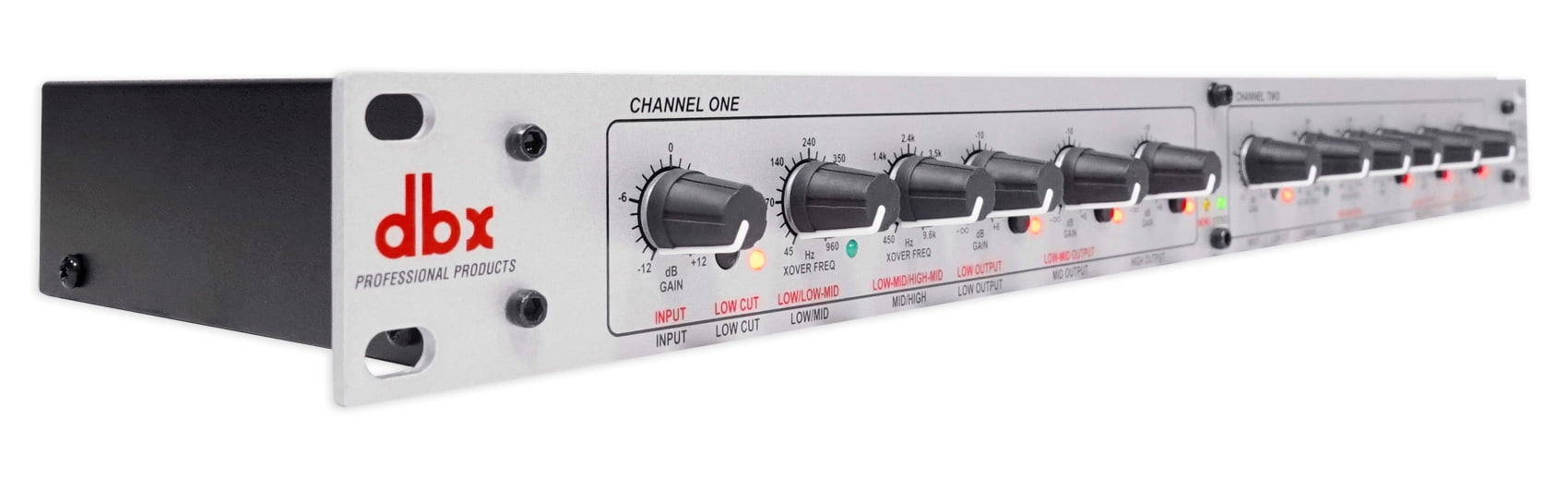

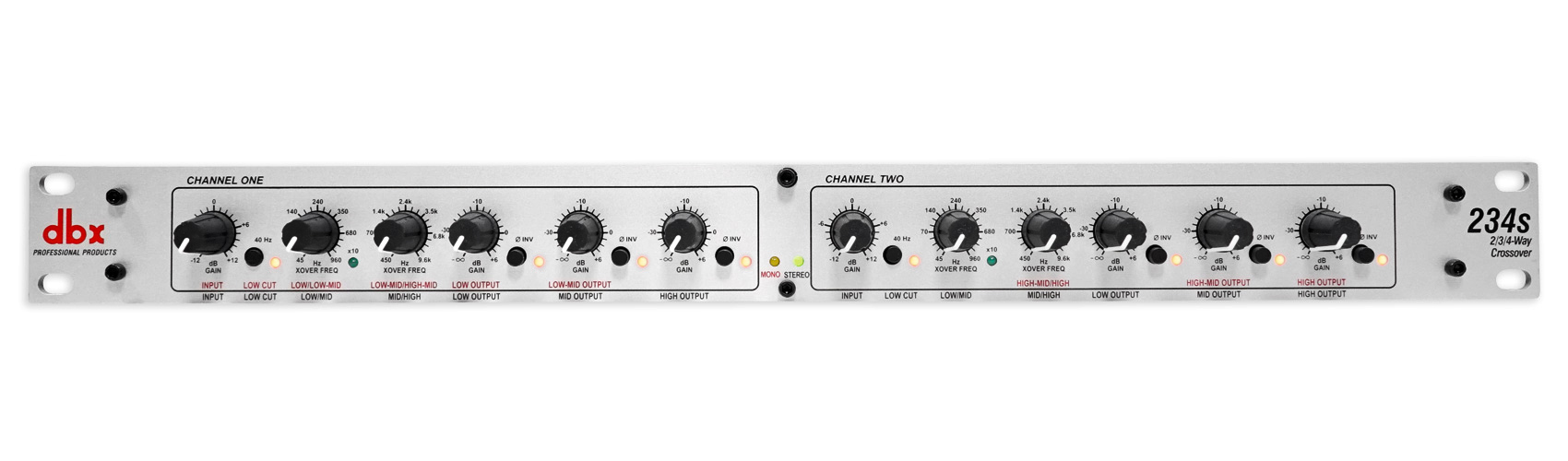

Features of 234s:

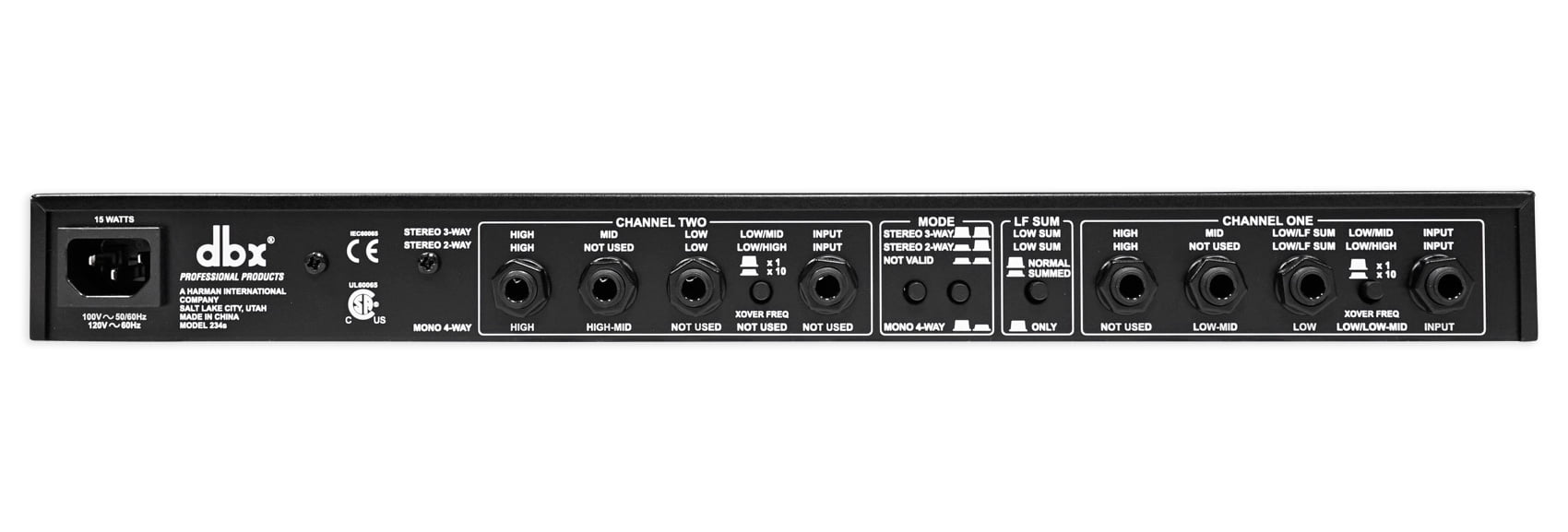

dbx 234S Stereo 2/3 Way/Mono 4-Way Professional Crossover, Rack Mount, 2 Channel

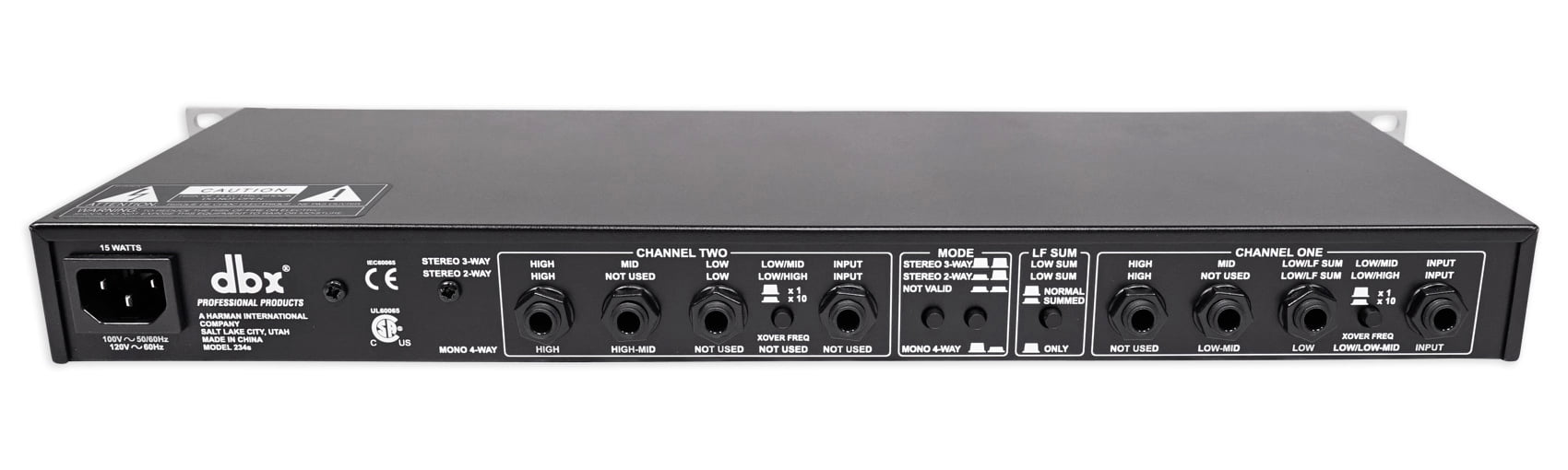

TRS Differentially Balanced Ins and Outs
Mode Switches for Mono 4-Way or Stereo 2-Way/3-Way Operation
Low Frequency Summed (Subwoofer) Output
10 Range Switch on Both Channels
40Hz High Pass (Low Cut) Filter Both Channels
Phase Reverse Switch On All Outputs
Individual Level Controls On All Outputs
24dB Per Octave Linkwitz-Riley Filters (The Professional Standard)
Stereo/Mono Status LEDs Indicate the Selected Mode
dbx® 2 Year Parts and Labor As Standard
CSA NRTL/C Approved
CE Compliant

Specifications:

Input Connectors: 1/4" TRS
Input Type: Electronically balanced/unbalanced, RF filtered
Input Impedance: Balanced >50k Ohm, Unbalanced > 25k Ohm
Max Input: >22 dBu balanced or unbalanced
CMRR: >40dB, typically >55dB @ 1 kHz
Output Connectors: 1/4" TRS
Output Type: Impedance-balanced/unbalanced, RF filtered
Output Impedance: Balanced 200 Ohm, unbalanced 100 Ohm
Max Output: >21 dBu balanced/unbalanced into 2k ohms or greater
Bandwidth: 20 Hz to 20 kHz, +/-0.5dB
Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB
Signal-to-Noise Ratio: Ref: +4 dBu, 22 kHz measurement bandwidth
Signal-to-Noise (Stereo Mode): >94dB (Low Output), >93dB (Mid Output), >90dB (High Output)
Signal-to-Noise (Mono Mode): >94dB (Low Output, Low/Mid Output); >92dB (High/Mid Output); >88dB (High Output)
Dynamic Range: >106 dB, un-weighted, any output
THD: < 0.004% at +4 dBu, 1 kHz; < 0.04% at 20 dBu, 1 kHz
Inter-Channel Crosstalk: < -80 dB, 20 Hz to 20 kHz
Crossover Frequencies (Stereo Mode): Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz
Crossover Frequencies (Mono Mode): Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz
Crossover Filter Type: Linkwitz-Riley, 24 dB/octave, state-variable

Click here for the Owner's Manual
