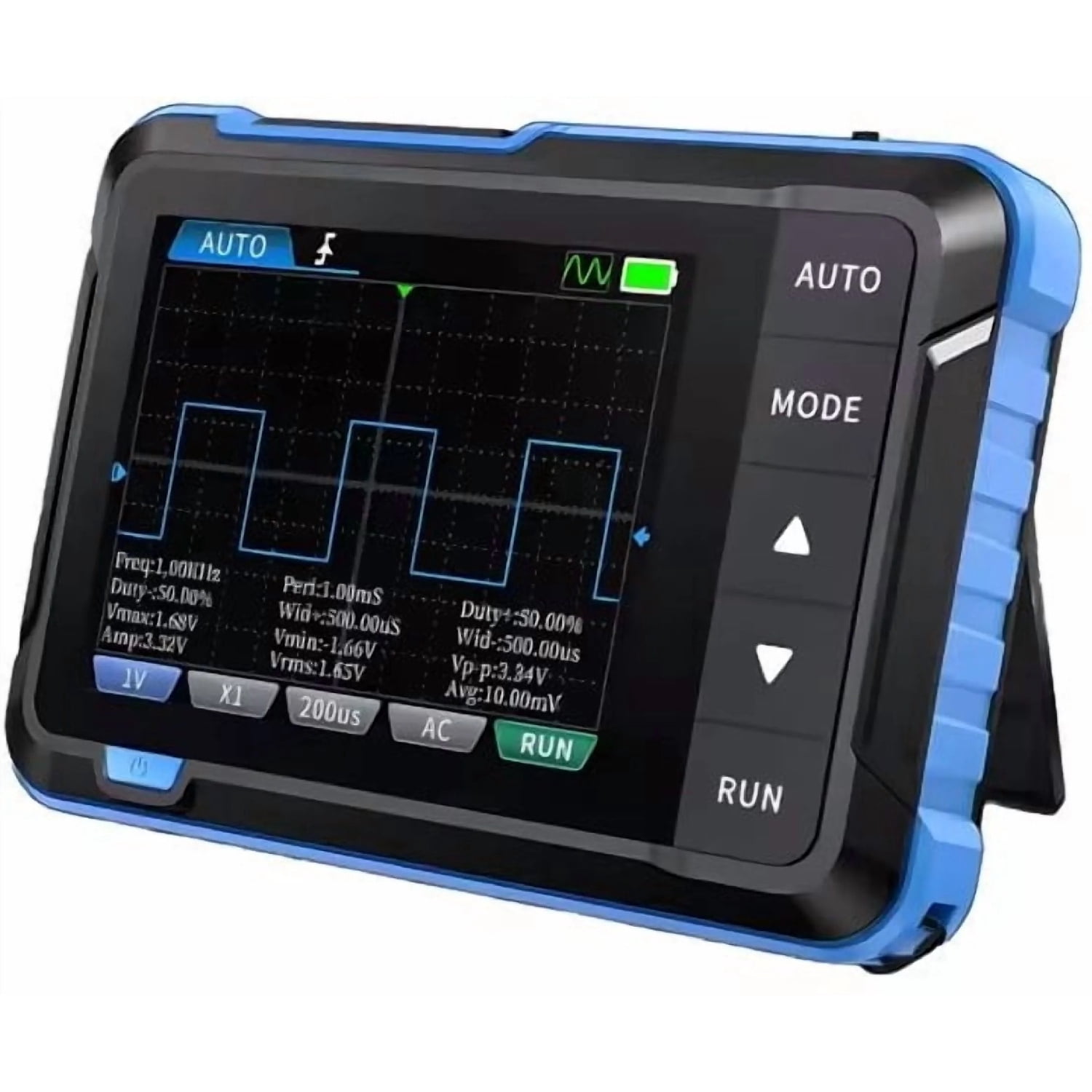

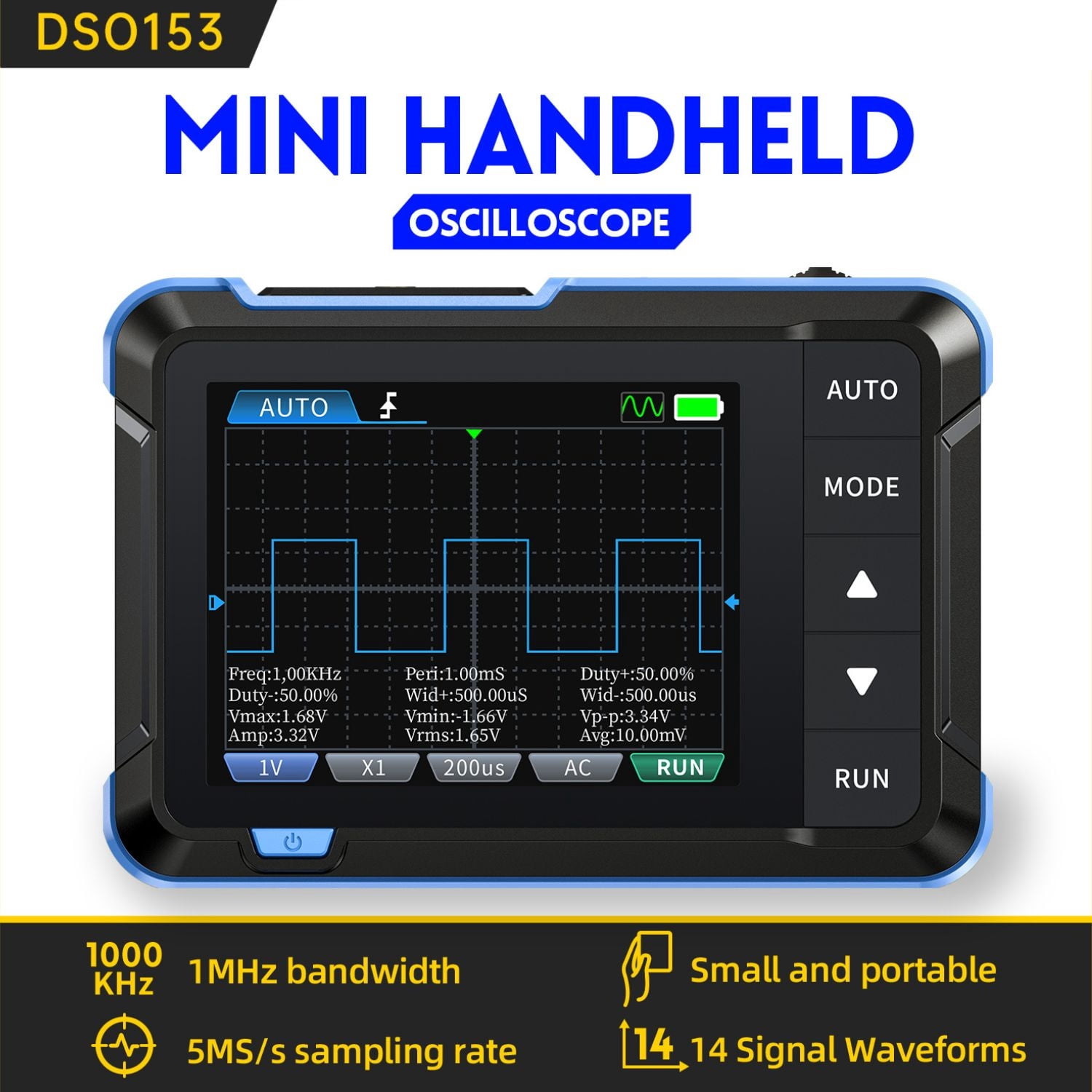

Meponn Handheld Digital Oscilloscope DSO-153 1MHz Bandwidth, 5MS/s Sampling Rate, 2.8 Inch HD LCD with 10KHz Signal Generator, 1-Count
Product details
| Management number | 237858969 | Release Date | 2026/07/11 | List Price | US$17.89 | Model Number | 237858969 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DSO-153 is a high-cost handheld digital oscilloscope for electronic repair, R&D and education.It features 1MHz bandwidth & 5MS/s real-time sampling rate, supporting ±400V (X10) wide voltage measurement with AC/DC coupling and 3 trigger modes (Auto/Normal/Single).The 2.8-inch 320*240 HD LCD ensures clear waveform display, and one-click AUTO function enables easy operation without complex adjustment.Built-in 1000mAh lithium battery provides 4h continuous use with Type-C 5V/1A charging port.The compact design (99x68.3x19.5mm, 100g) is perfect for on-site testing and portable use.It also has a 10KHz signal generator with multiple adjustable waveforms to meet diverse testing needs.
- High-Precision Sampling & Wide Bandwidth：1MHz bandwidth and 5MS/s real-time sampling rate, accurately capture periodic analog and aperiodic digital signals; support X1(±40V)/X10(±400V) wide voltage measurement with AC/DC coupling modes

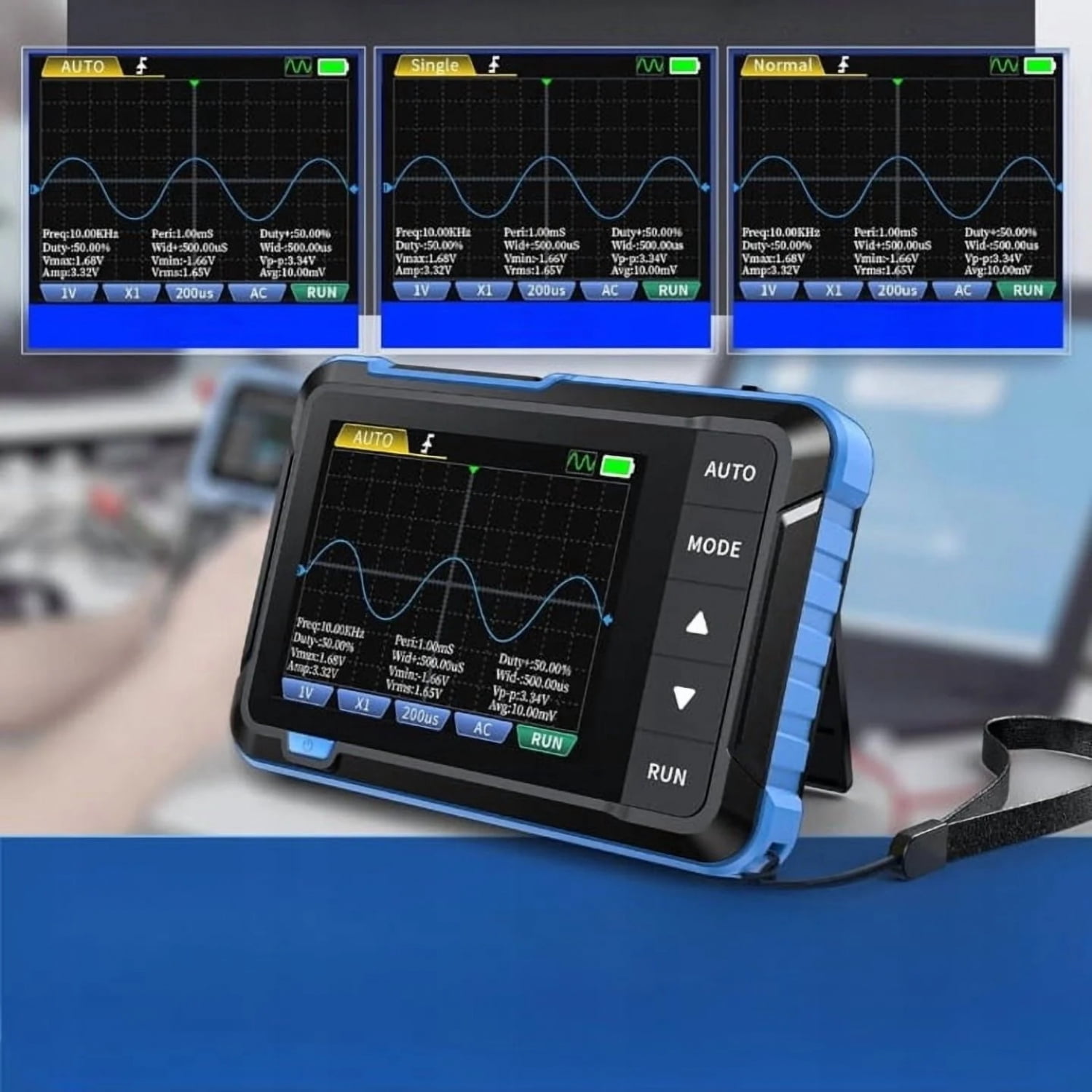

- One-Click Smart Operation：Equipped with one-key AUTO function for quick waveform display without tedious adjustment; 3 trigger modes (Auto/Normal/Single) and switchable rising/falling trigger edges for efficient testing

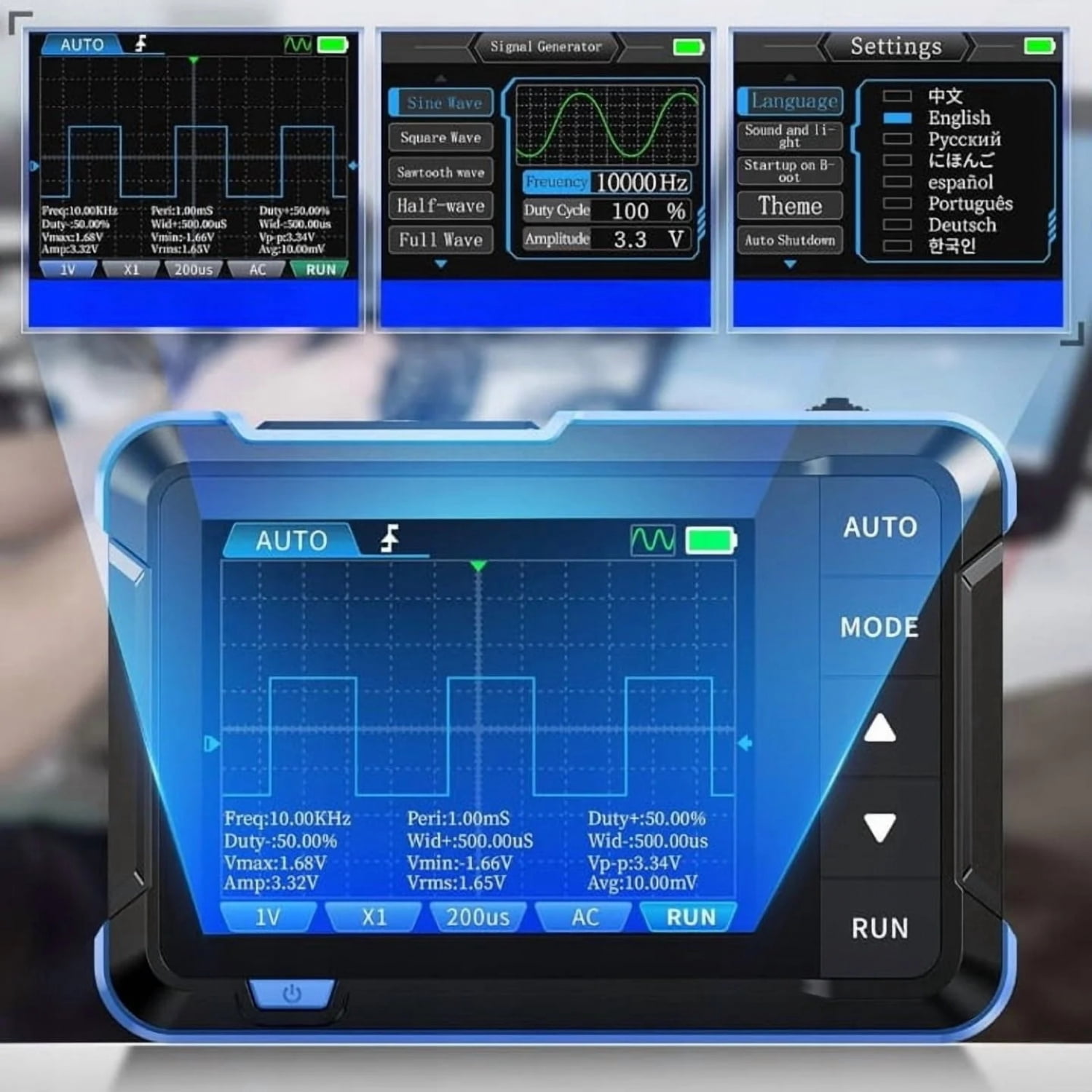

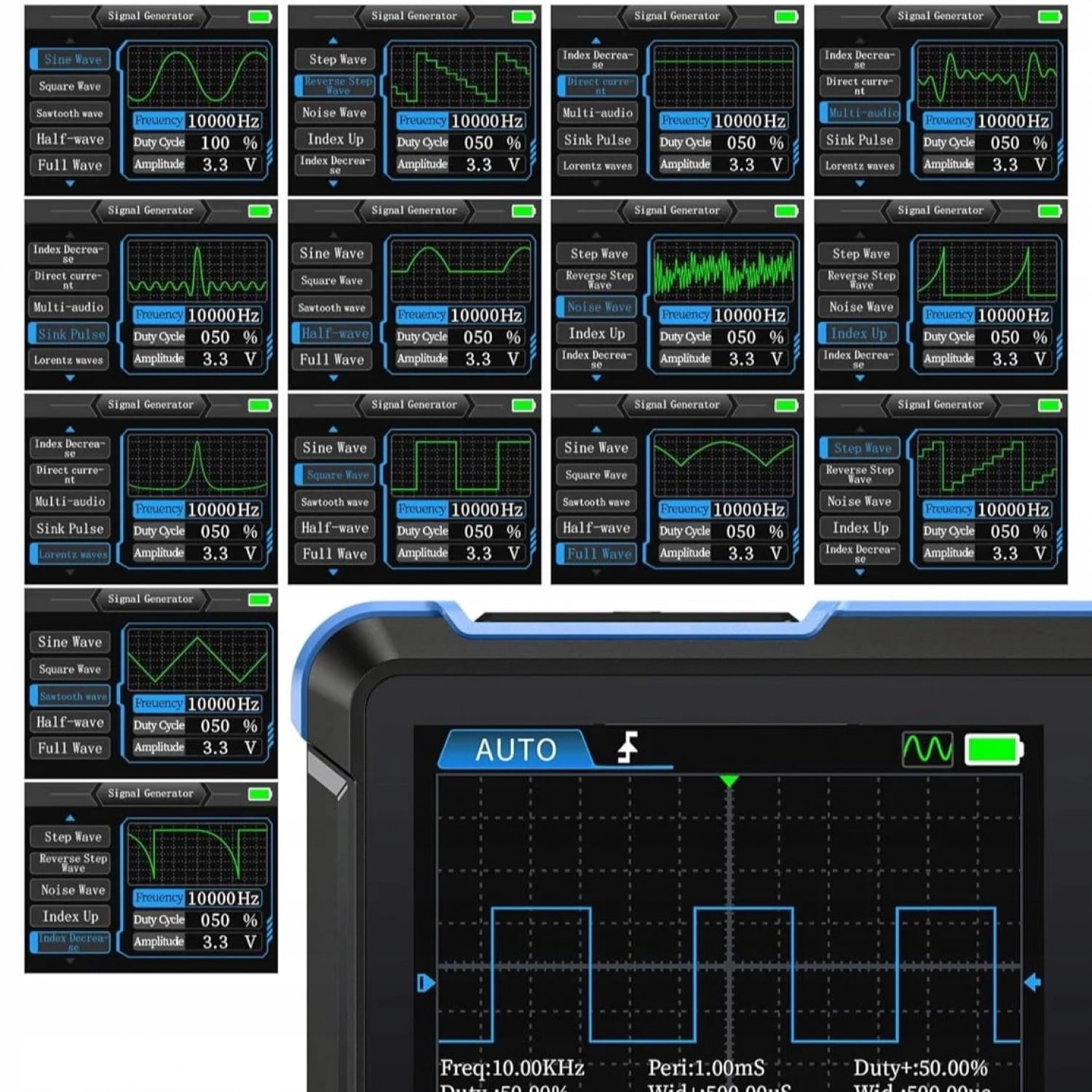

- Multi-Function 10KHz Signal Generator：0-10KHz adjustable frequency, 10+ waveforms (sine/rectangle/sawtooth, etc.); 0-100% duty cycle and 0.1-3.3V adjustable amplitude, meeting diverse electronic testing demands

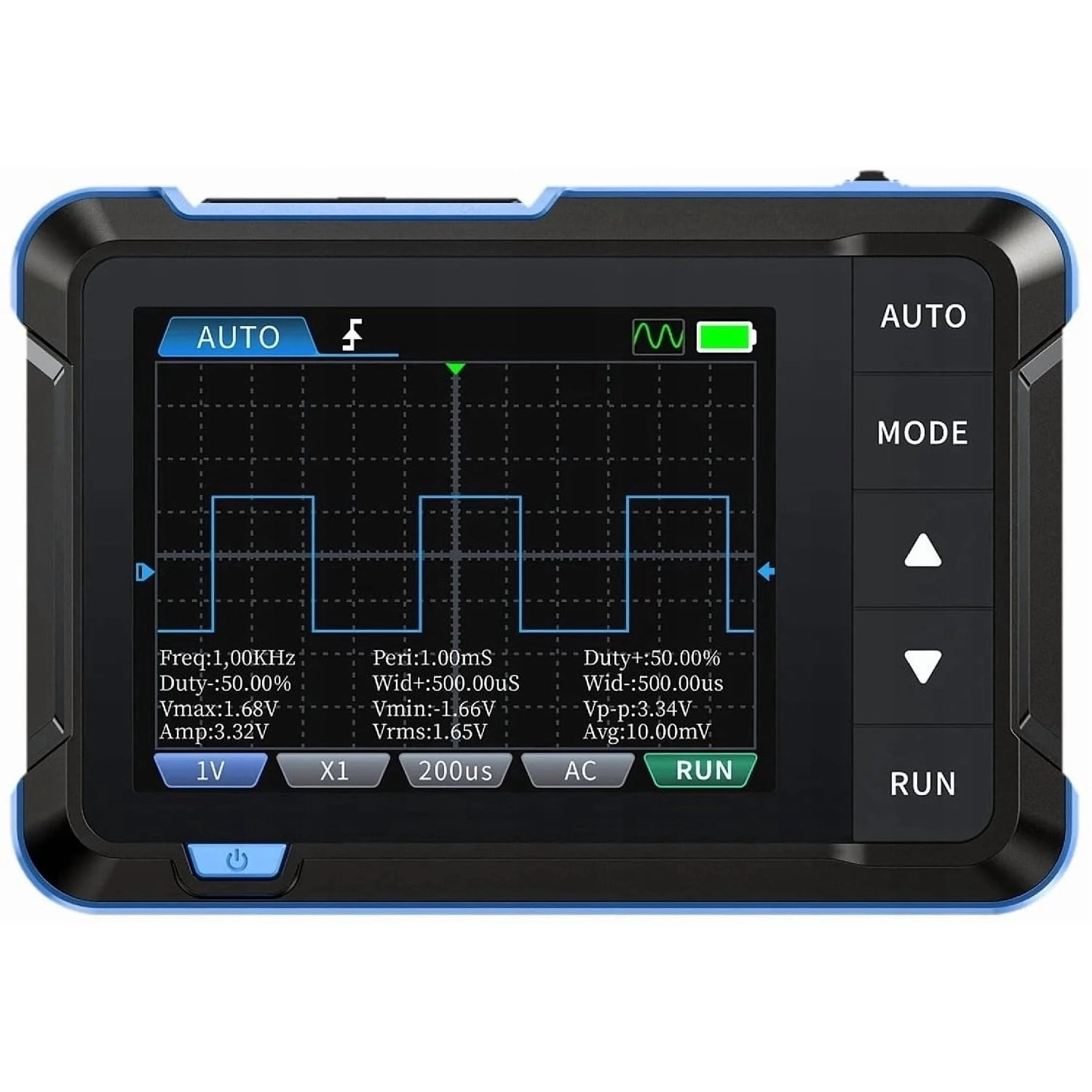

- HD Display & Ultra-Portable Design：2.8-inch 320*240 resolution HD LCD for clear waveform viewing; compact size (99x68.3x19.5mm) and light weight (100g), easy to carry for on-site and outdoor operation

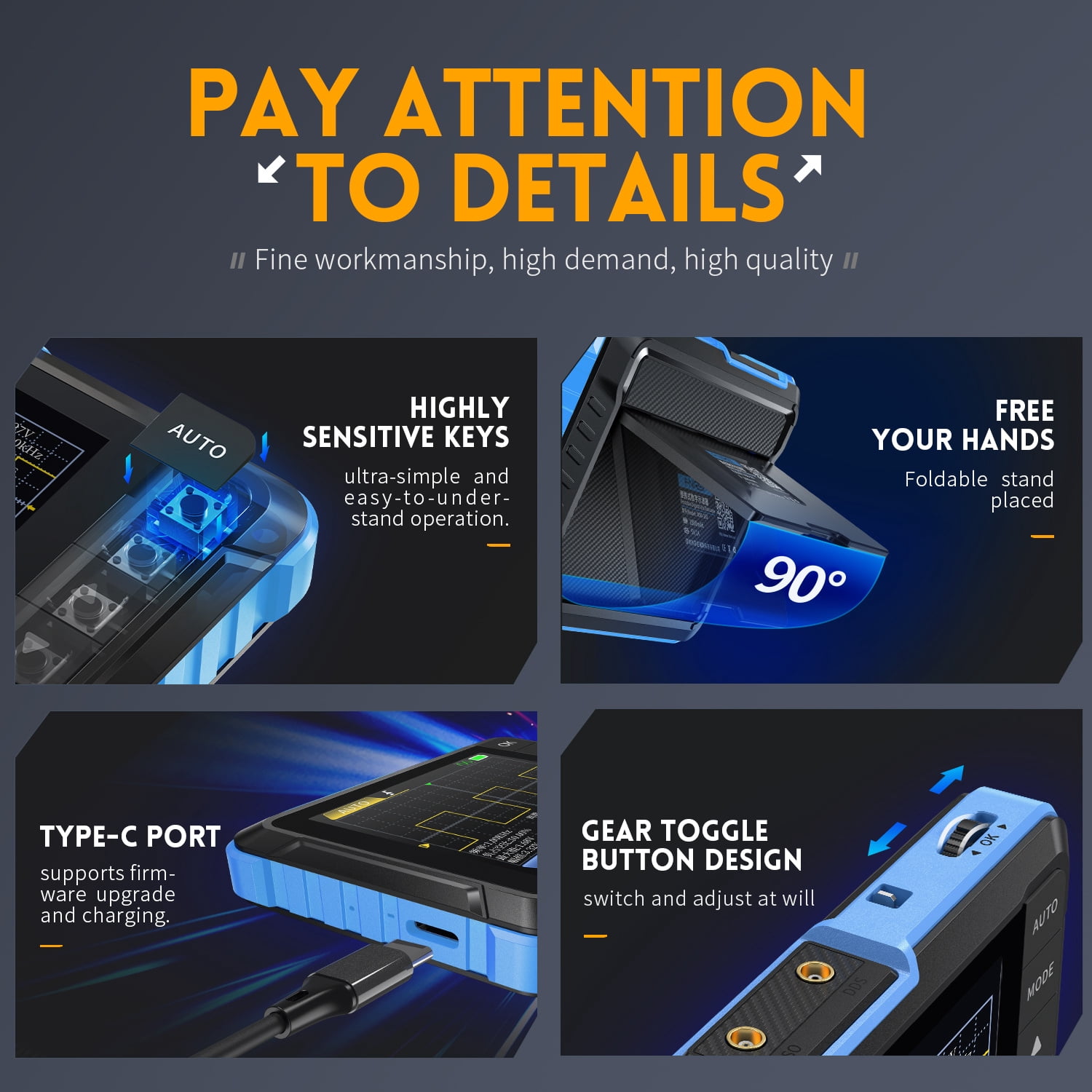

- Long Battery Life & Convenient Charging：Built-in 1000mAh high-quality lithium battery, 4 hours of continuous use when fully charged; Type-C 5V/1A charging port with charge indicator (red for charging, green for full), fast and convenient power supply
| Bandwidth | 1M |
|---|---|
| Sample rate | 10 kHz |
| Channels | 2 |
| Oscilloscope type | Digital Oscilloscopes |
| Resolution | 320*240 |
| Screen size | 2.8 in |
| Features | Compact, Handheld, Digital Display, Portable, Easy To Use, LCD Display |
| Power type | Battery |
| Display | LCD |
| Brand | Meponn |
| Accessories | 1.DSO-153 Main Unit 2.Lanyard 3.Alligator Clip Probe 4.Adapter 5.P6100 High-Voltage Probe 6.Type-C Data Cable 7.User Manual |
| Dimensions | 8.27 x 1.96 x 5.90 in |
| Weight | 0.44 lb |
| Has written warranty | No |
| Model | DSO-153 |
| Rec. use | Outdoor |
