KTC Kyoto Machine Tools TGW100202 14 x 18 Inserts, Preset Torque Wrench, Head Replacement Type, Torque Range 20-100Nm

For tightening bolts with prescribed torque. Uses the KTC standard insertion angle based on the German TL standard that extends the usage range. Features high visibility scales for more comfortable torque settings. When the preset torque is reached, the light shock will be transmitted to your hand or a "click" sound to confirm the tightening is complete. There may be cases where there is no sound due to the torque set or individual differences in the product. The grip is made of elastomer resin that is resistant to deterioration and has a good fit. Features a locking mechanism to prevent accidental changes in torque values. Measurement accuracy is ±3% and meets ISO standards. The measurement direction is only in the right direction (around the watch). Comes with a durable resin case for convenient storage. Please use with the included extension replacement head attached.

• Insert: 14 x 18
• Torque Range: 20-100Nm
• Minimum scale: 0.5
• Torque Wrench Size (L x W): 17.3 inches (438.3 mm), L2: 14.6 inches (372 mm), B: 12.4 inches (31.5 mm), T: 12.4 inches (31.5 mm)

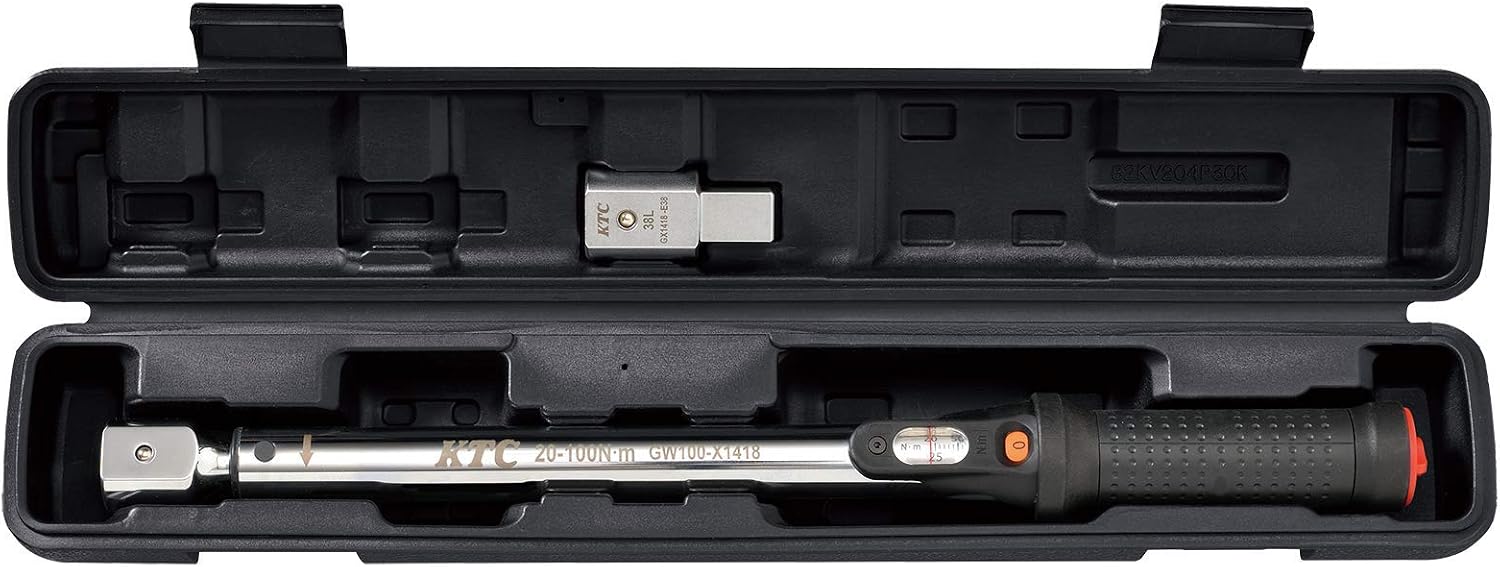

• Case Size (W x D x H): 19.5 x 3.1 x 3.3 inches (495 x 78 x 85 mm)
