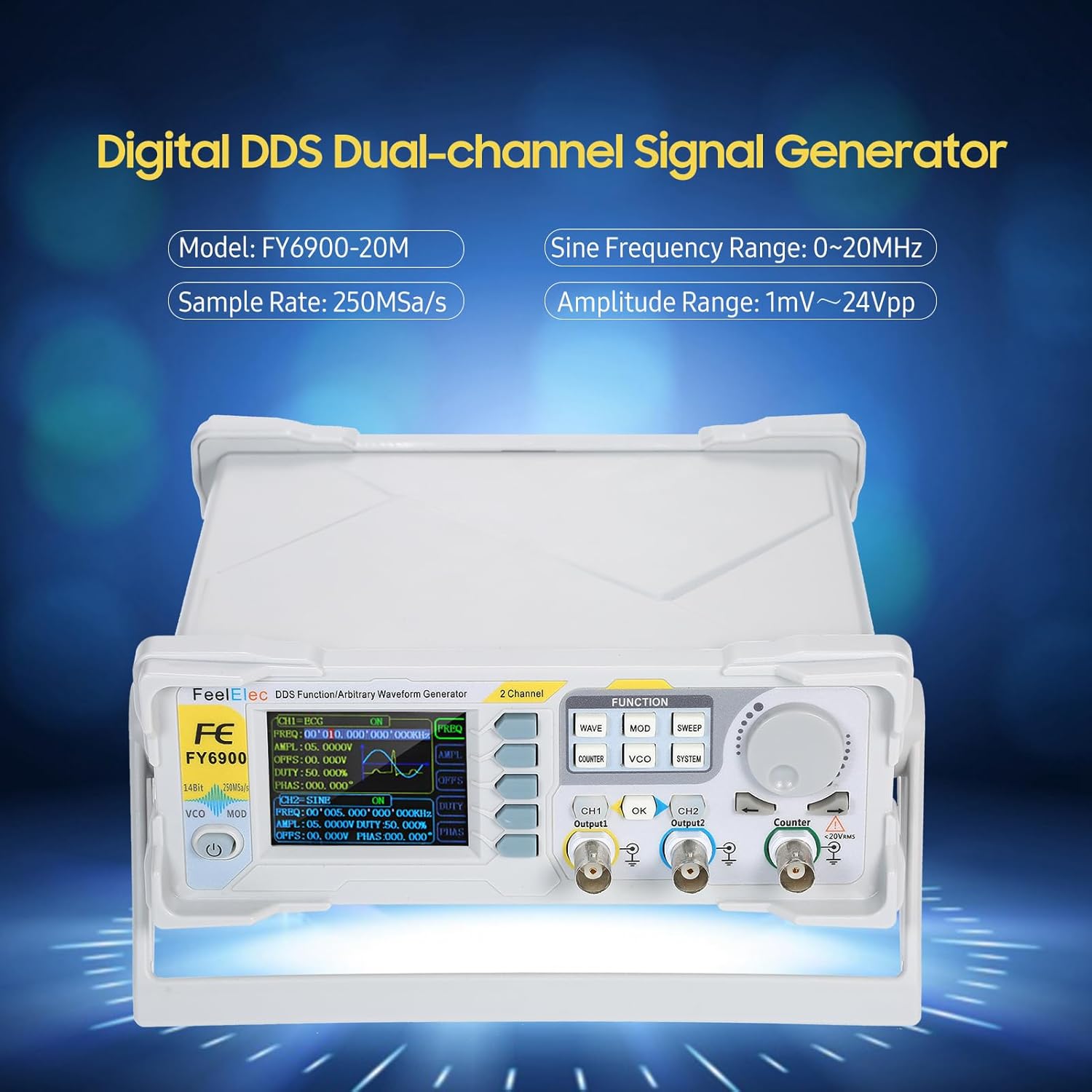

Cocoarm DDS Signal Generator 60 MHz Function Generator Arbitrary Wave Generator with 2.4 Inch TFT LCD at FM PM Ask FSK FSK PSK Modulation for Laboratory Electronics (US Plug FY6900-20M)

Specifications: connector and : EU connector FY6900-20M / EU connector FY6900-60M / EU connector FY6900-100M / US connector FY6900-20M / US connector FY6900-60M / US connector FY6900-100M / AU-connector FY6900-60M (Optional) Material: ABS SINUS: 0–20 MHz (20 MHz), 0–60 MHz (60 MHz), 0–100 MHz (100 MHz) : 250 /S (20 MHz, 60 MHz), 300 /S (100 Mbit/s) Output range: 1 MV - 24 VPP (20 Mbit/s, 60 Mbit/s), 1 MV–25 VPP (100 Mbit/s) vertical resolution: 14 Bit wavelength: 8192 points x 14 bit Minimal pulse width NS modulation type: AM, FM, PM, ASK, FSK, PSK Display: 2.4 inches (320 x 240 pixels), TFT-Farbdisplay Non-fleeting memory: Saves user-defined shaft shapes (8K, 14 bit) X 64 Power supply: AC 100–240 V Size: 210 x 195 x 75 mm (L x W x H) Weight: 611 G 21.56 oz Packaging weight: 1065 g packaging variable: 27 x 21 x 9.5 cm Scope of delivery: 1 x DDS signal generator 1 x power cable 1 x USB data cable 1 x BNC-BNC cable 2 x BNC-Clamp/Holder cable

• [Extensive wave shapes and memory] Save up to 64 custom shaft shapes with 8192 points each * 14Bit. The large storage depth enables detailed signal reproduction. 35 wave shapes such as sinus rectangle and noise are preset.
• [Versatile modulation options] Use different modulation types such as at the FM PM ASK FSK and PSK. The generator offers Sweep functions for frequency amplitude offset and duty ratio with linear or logarithmic course and different directions.
• [High - signal production] The signal generator uses Direct Digital Synthesizer (DDS) technology for stable precise and low -distortion signals. With 14Bit Highspeed converter and 300msa/s sampling rate, it guarantees an exact signal reproduction. Ideal for demanding laboratory and test applications.
• [Advanced functions and Actuator] with VCO function for control using an external signal and burst edition with manual internal or external Actuator. The meter function with DC and AC coupling solves inaccuracies in AC coupling. Ideal for complex test tasks.
• [Clear and detailed representation] The 2.4 inch TFT color display with 320*240 resolution also shows parameters and graphics of both channels. The intuitive user interface enables quick and precise adjustment of all parameters for efficient work.
